Suction Rolls
for packaging, writing and printing, tissue and specialty paper grades

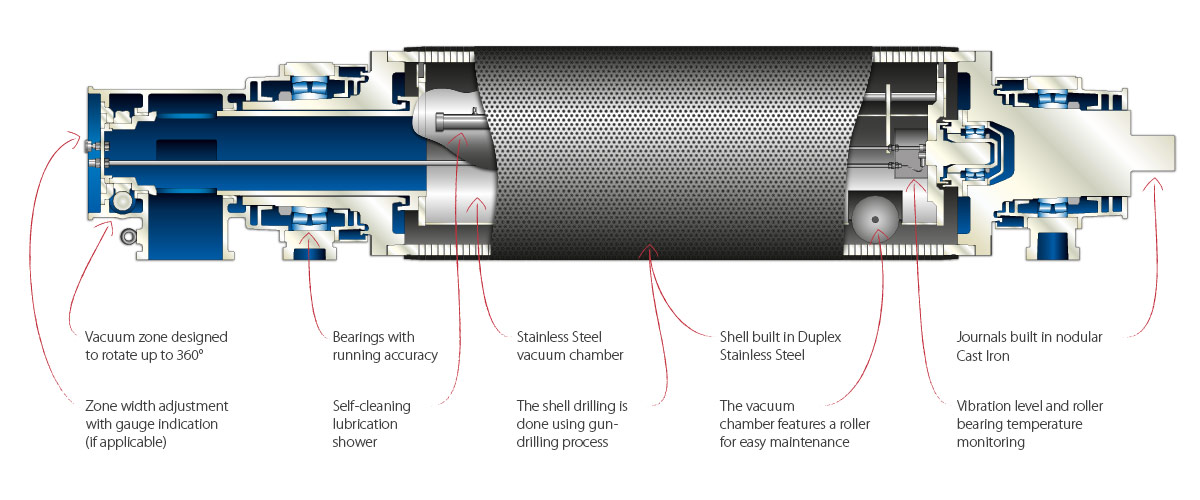

Suction Press Roll / Suction Pick-Up Roll / Suction Couch Roll

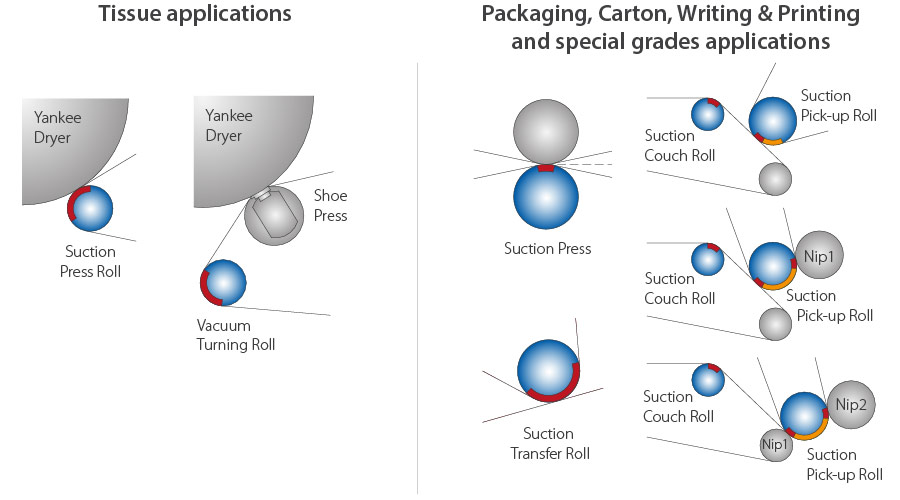

Applications
Design Features
Driven, with vacuum outlet on tending side
It may feature one or more vacuum zones, depending on its application
The Suction Roll design enables its use on a wide range of applications
The roller bearings lubrication can be done by grease or oil (centralized lubrication system)

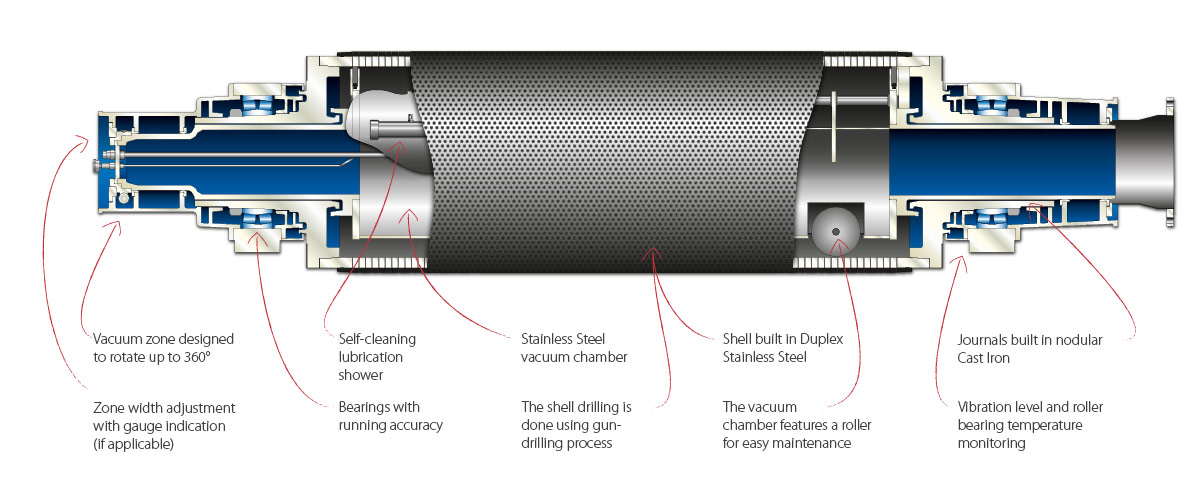

Suction Press Roll / Suction Pick-Up Roll

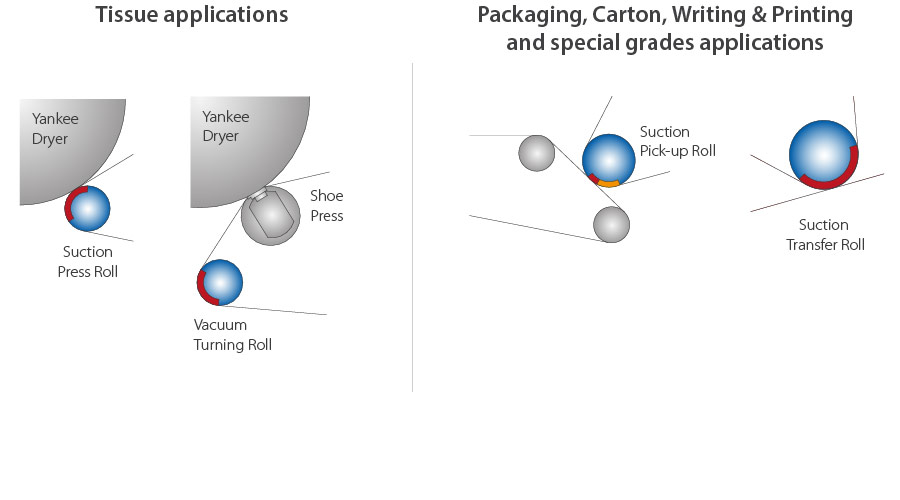

Applications
Design
Non-driven application with vacuum outlet at drive side
It may feature one or more vacuum zones, depending on its application
The Suction Roll design enables its use on a wide range of applications

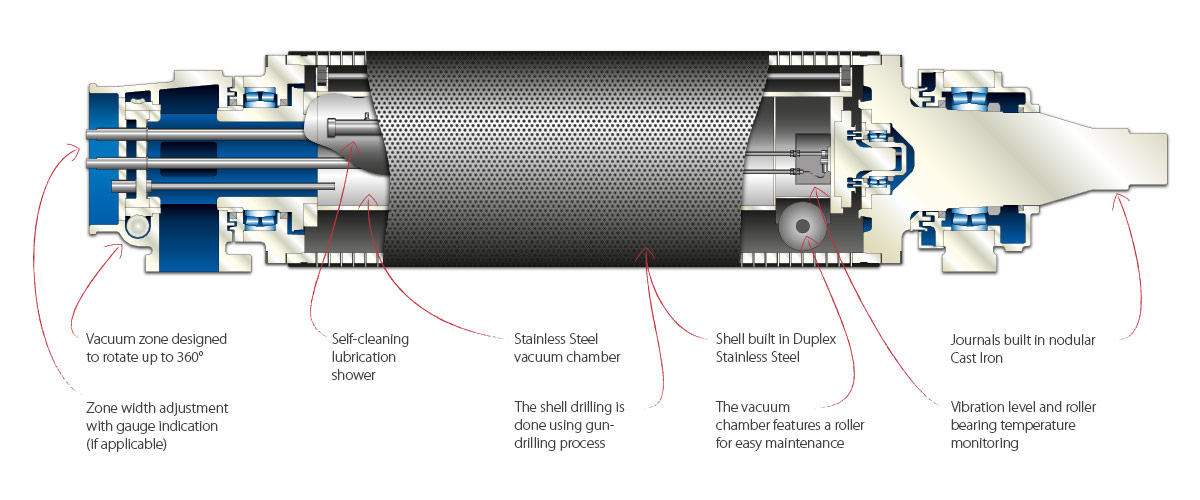

Suction Couch Roll

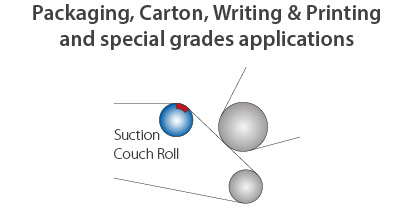

Applications

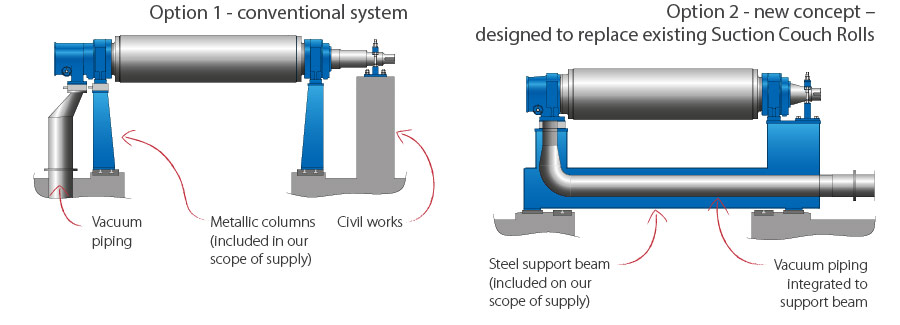

Cantillever system
Design
Specific design for Suction Couch Rolls
Driven, with vacuum outlet at tending side
It features a simple yet efficient design with shell running over outer ring oftending side roller bearing
Grease lubrication
