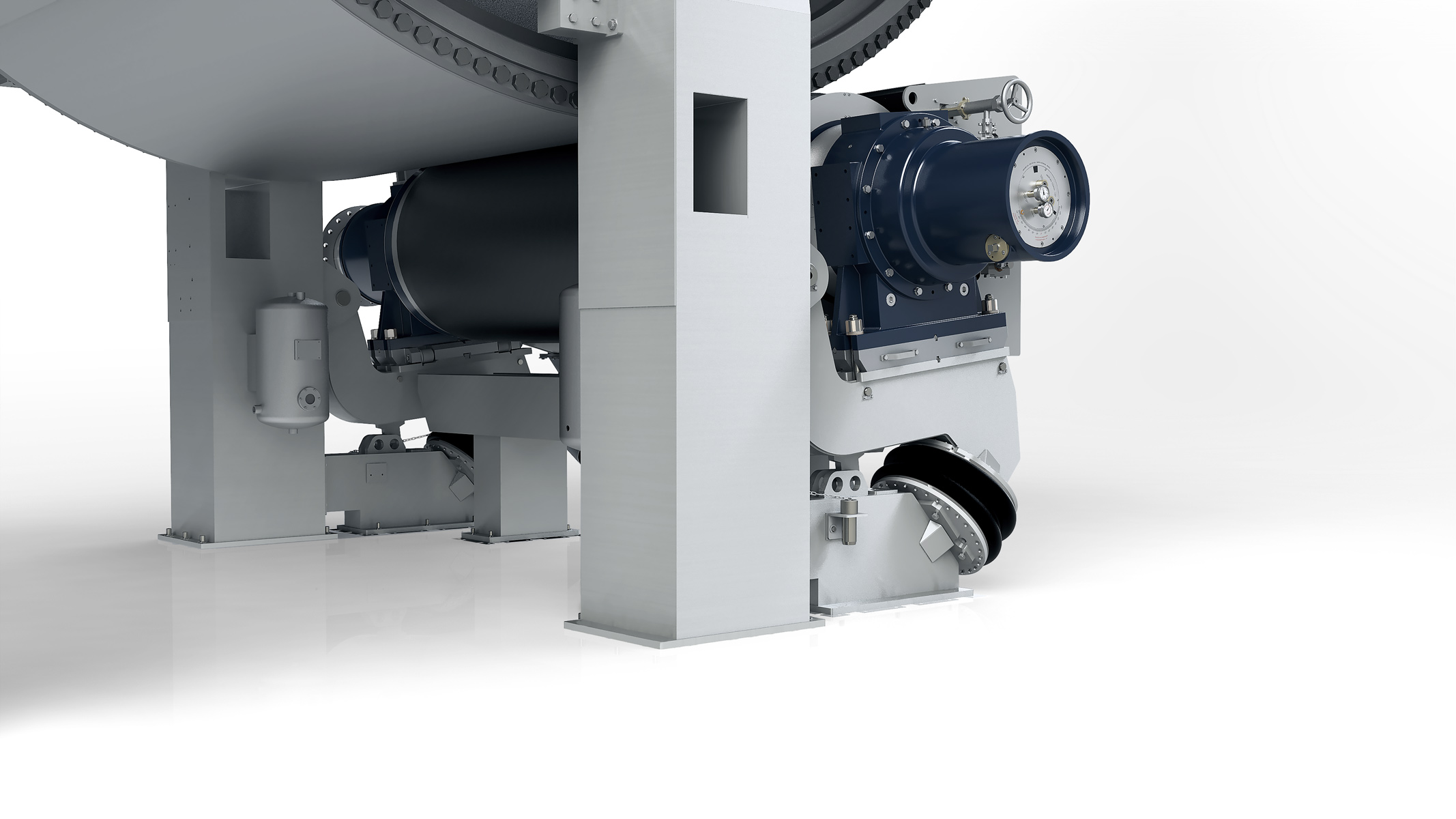

Suction Pressure Roll
Design
Larger suction pressure rolls promote a wider nip and operation at high speeds with no damage to roll covers
Hydro-pneumatic system for vibration attenuation
Nip load operation up to 120 kN/m
Internal cross rails with carriage are supplied for press roll removal
Suction Roll
Diameter up to 1200 mm (47”)
Internal suction box in stainless steel construction
Suction shell in stainless steel or brass constructions
Bearing lubrication system with circulating oil for main bearings and internal bearing
Accessories for Suction Pressure Roll
Water Channel with Double Body DST Doctor
Improves significantly the press efficiency increasing the water removal from suction roll surface reducing paper web rewetting.
Double body DST doctor also ensures a more homogeneous water removal on cross direction, improving the paper web moisture profile.
Steam box
Increases the after press dryness
Allows the reuse of the flash steam from the Yankee cylinder and hood resulting in energy savings
Very useful operating combined with both, suction press rolls and blind drill press roll
