Yankee Dryer - Accessories


Turbulence Bars

The turbulence bars function is to break the condensate film formed on the inner cylinder surface thus allowing higher convection between the steam and the cylinder, improving heat transfer and consequently a providing a higher evaporation rate

Increase cylinder drying capacity

Improve drying/moisture profile

Easy installation

Low cost investment

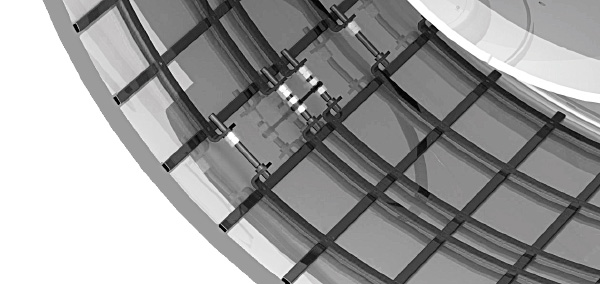

Turbulence bars installed

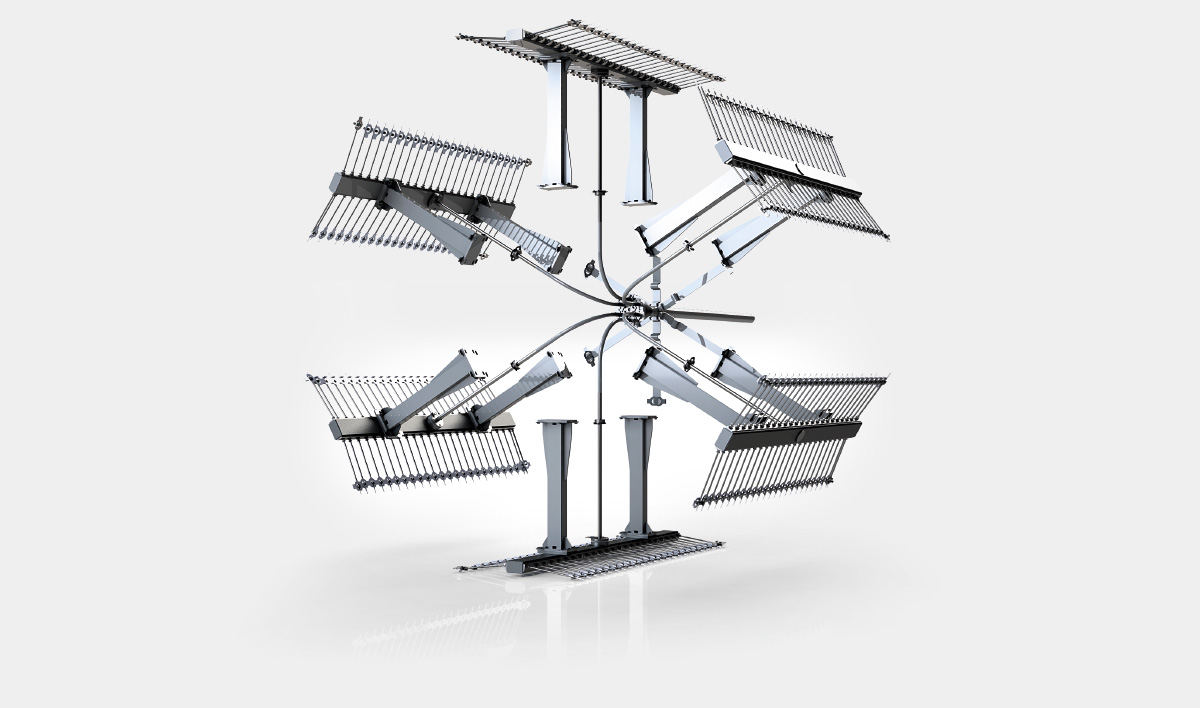

Condensate extractors

The condensate extractors are supported by solid structures which ensure the required frame rigidity

The entire system is designed to compensate thermal expansion and provide high wear resistance

Benefits

Homogeneous condensation extraction resulting in:

    Extremely homogeneous Yankee cylinder cross temperature profile

    Homogeneous cure/maintenance of the organic coating

    High stability of drying and creping processes

    Increased drying capacity

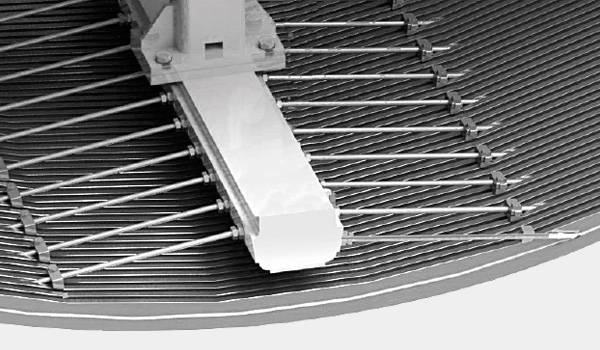

For ribbed cylinders

For smooth cylinders

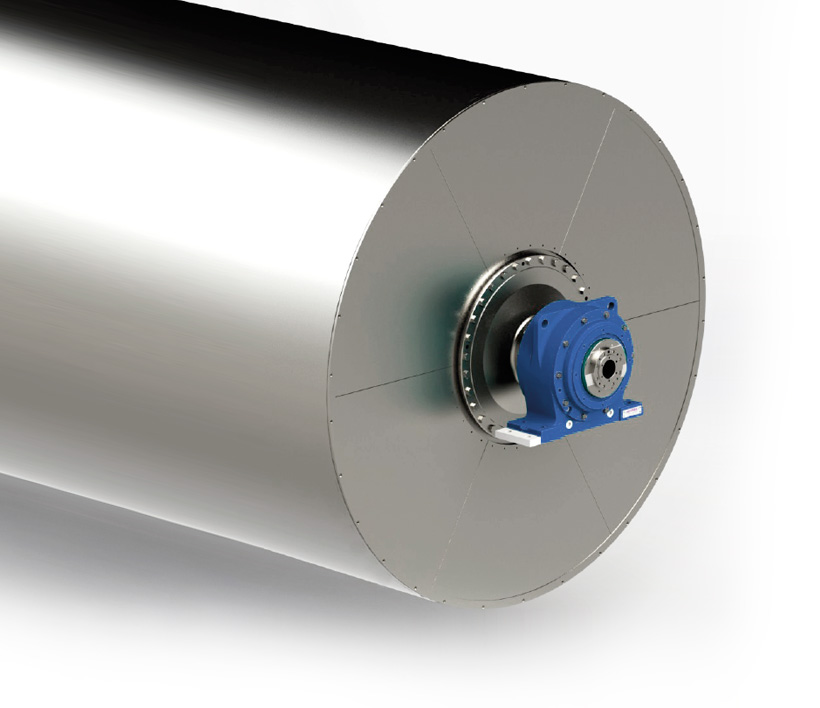

Yankee Dryer Heat Insulation


The Yankee Dryer loses heat through its heads which means a continuous energy waste. The cylinder thermal insulation minimizes this loss resulting in considerable energy savings

Additionally, thermal insulation also increases operator safety due to the significant temperature reduction on the external part of the insulation


Steam saving from 3 to 5%

Increased operator’s safety

Low cost investment
