Shell Suction Rolls


Material with a high chromium and nitrogen content, and frequently molybdenum. Due to this material composition, it offers good resistance to localized and uniform corrosion

The duplex microstructure contributes to the high crack resistance caused by stress corrosion. The high yield stress of duplex steel also implies in high fatigue resistance

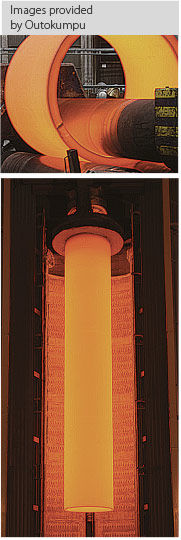

We use tubes supplied by Outokumpu, a company located in Avesta, Sweden, and since 1973 we have already produced more than 2.500 hot rolled pipes used in the manufacturing of Suction Rolls in Duplex Stainless Steel

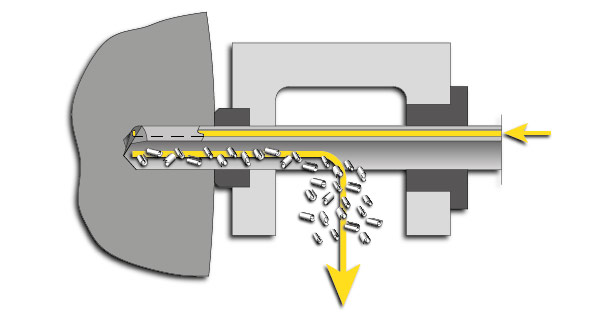

The Shell is drilled by the gun-drilling process, resulting in significant improvement on the surface finishing of the holes


Supply limits

Diameter Length Thickness
500 - 2.000 mm 12.000 mm 30 - 105 mm

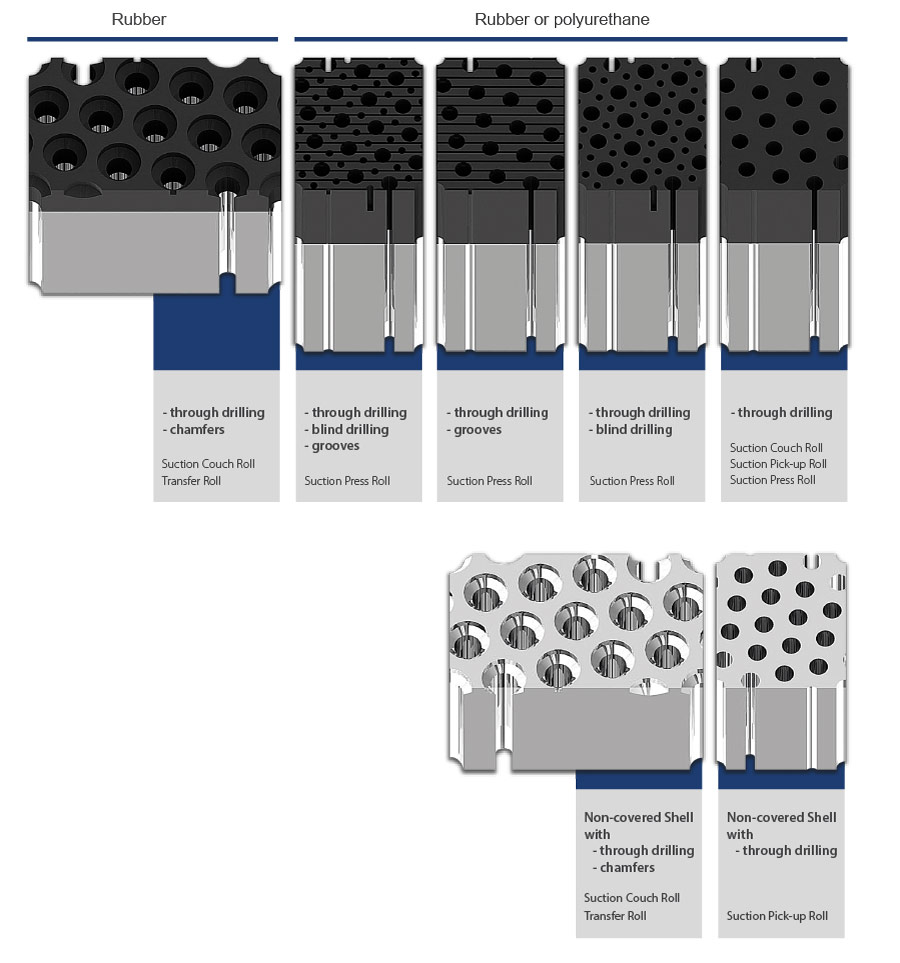

Shell cover options
